Description

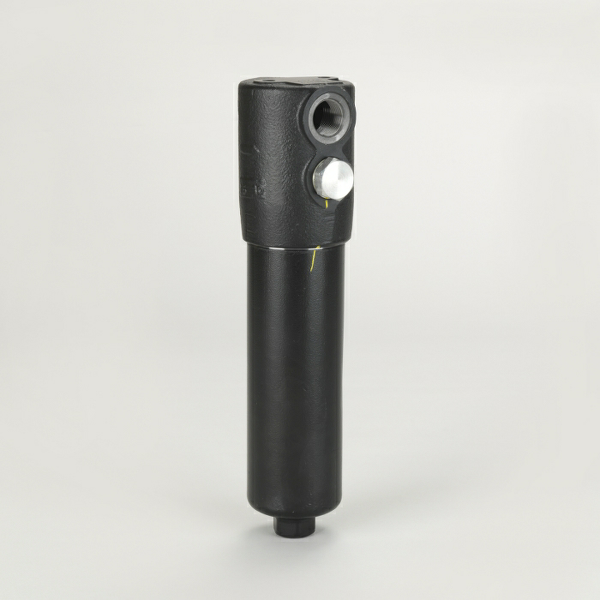

In line Hydraulic High pressure filter canister
Operating pressure up to 42MPa (420 Bars)
Static Pressure testing up to 63 MPa (630 Bars)
Bypass valve integrate in he head setting at 600 kPa (6 bars)
Attributes
Outer Diameter 85 mm (3.35 inch)
Thread Size 1/2 BSP/G
Inlet Size 3/4 BSP/G
Overall Length 328.5 mm (12.93 inch)
Bypass Valve Setting LR 6 bar (87 psi)
