Description
MAIN DATA :

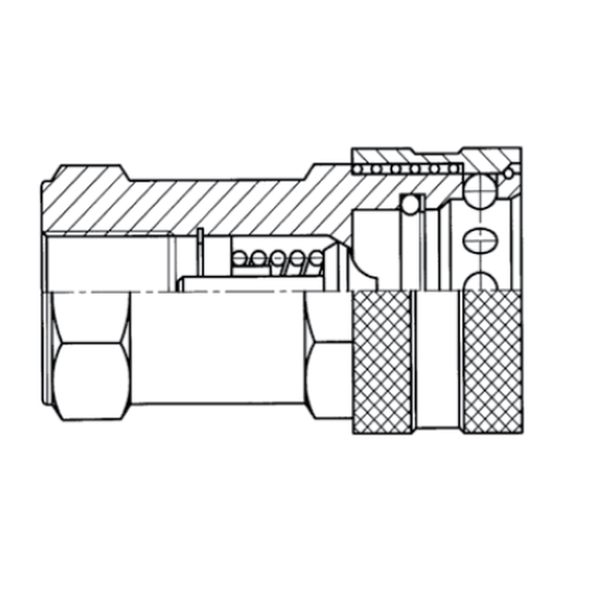

Series N designs, also known as agricultural interchange,
probably the most popular coupling design worldwide on agricultural
applications. The size 1/2” is identical to series A ISO7241-A interchangeable.
Type : Female
Max working pressure 250 Bar

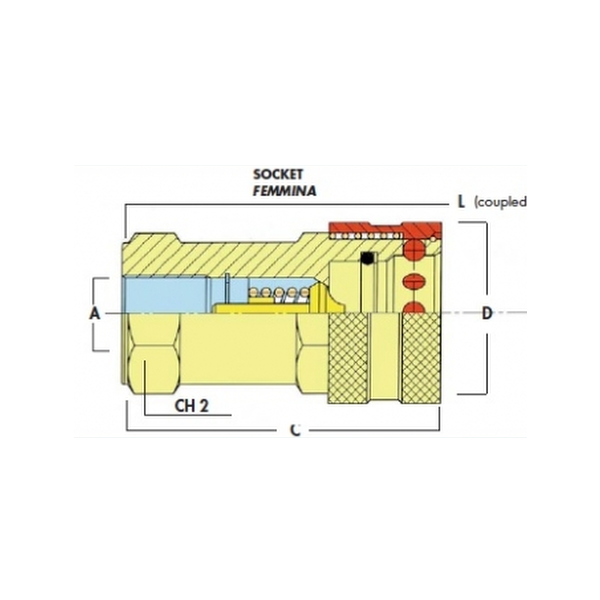

Dimensions
A diameter : 3/4 Bsp
C in mm : 82
D in mm : 46
CH2 in mm : 38
