Description

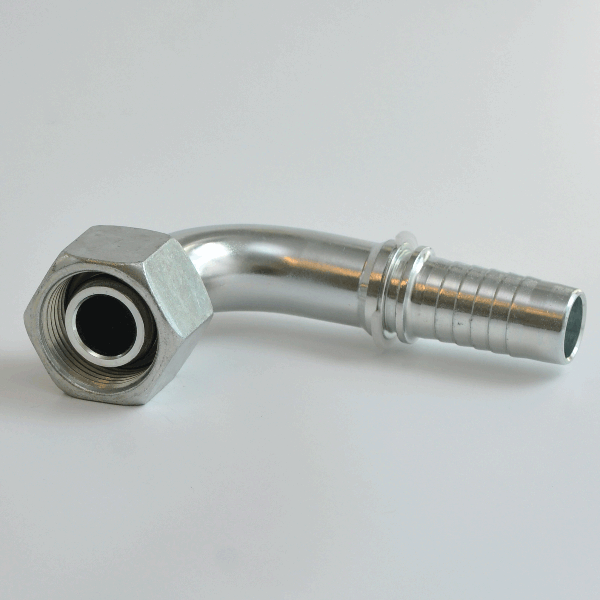

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
METRIC HEAVY FEMALE SWIVEL (24° CONE SEAT)

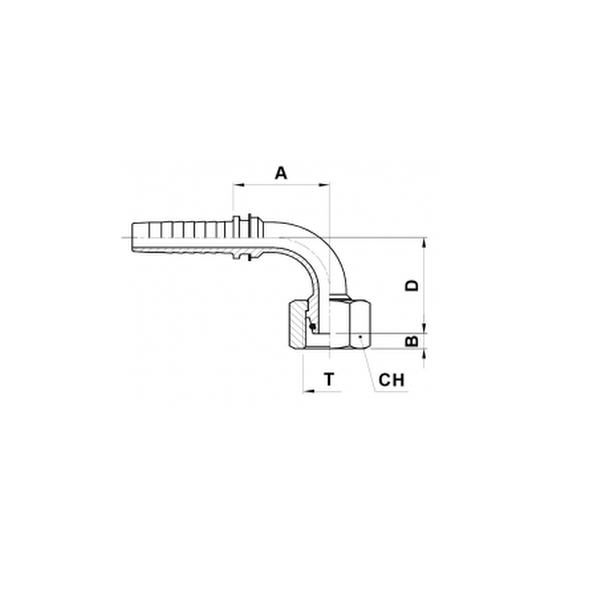

Dimensions :
Hose Bore DN 31 – 1 1/4 Inch – Size 20
Pipe : L35
T : M45 x 2
A : 85.5 mm
B : 2 mm
D : 83 mm
CH : 50 mm
