Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

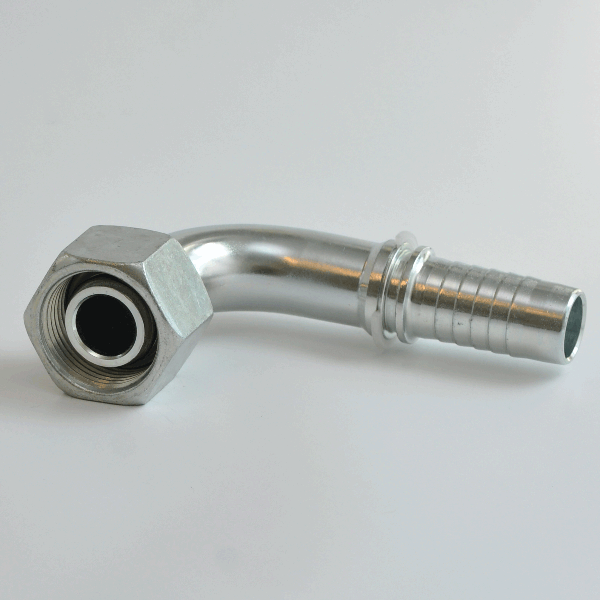

METRIC HEAVY FEMALE SWIVEL – 90° ELBOW (24° CONE SEAT)

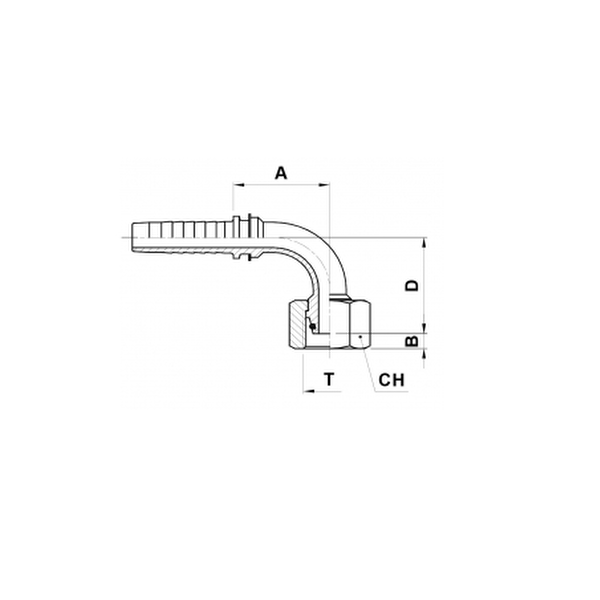

Dimensions :
Hose Bore DN 16 – 5/8 Inch – Size 10
Pipe : S20
T : M30 x 2
A : 54 mm
B : 3.5 mm
D : 55 mm
CH : 36 mm
