Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

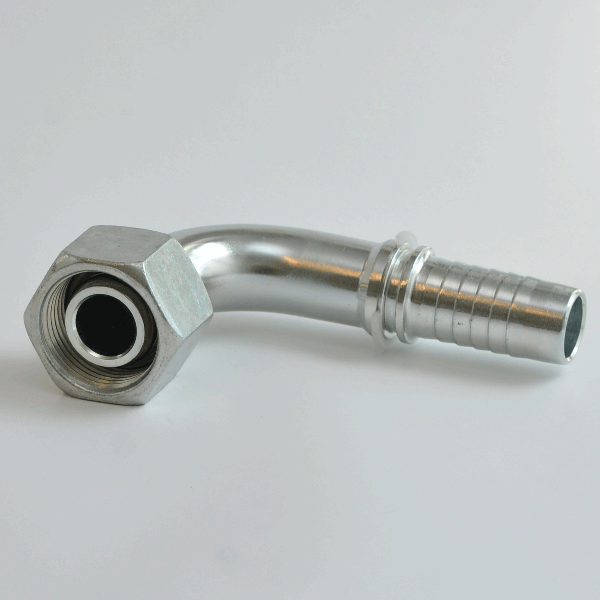

METRIC HEAVY FEMALE SWIVEL (24° CONE SEAT)

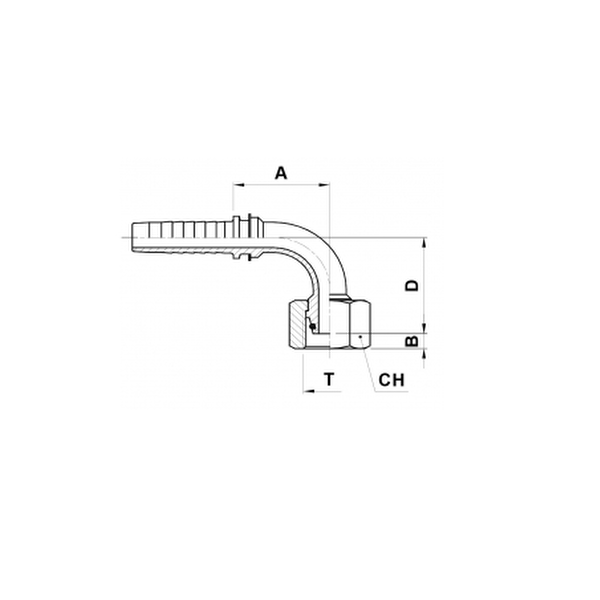

Dimensions :
Hose Bore DN 6 – 1/4 Inch – Size 04 L
Pipe : L10
T : M16 x 1.5
A : 28.2 mm
B : 1.5 mm
D : 32.5 mm
CH : 19 mm
