Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

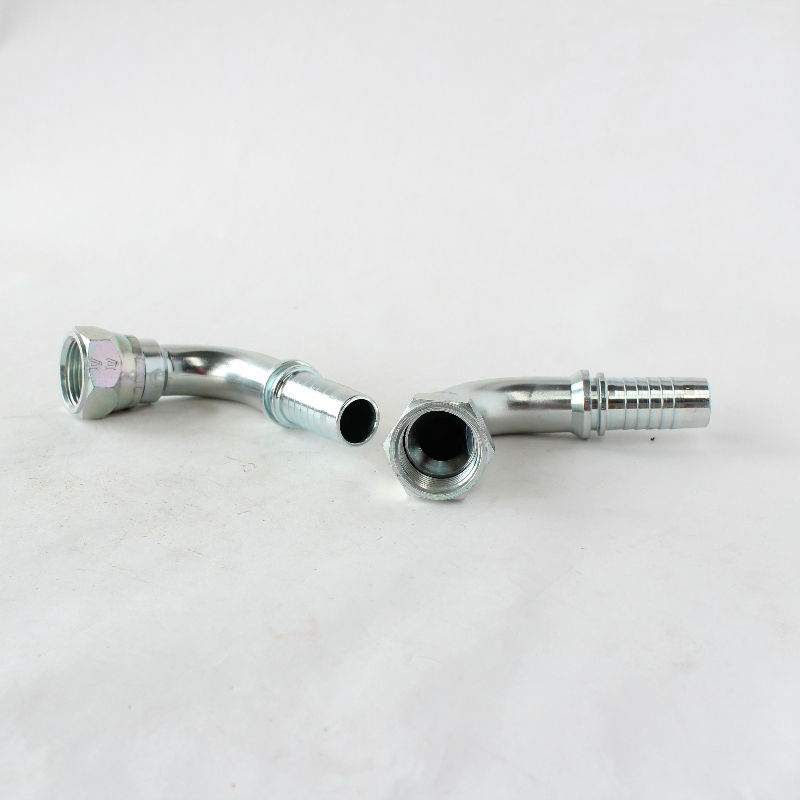

JIC 37° FEMALE SWIVEL – 90° ELBOW

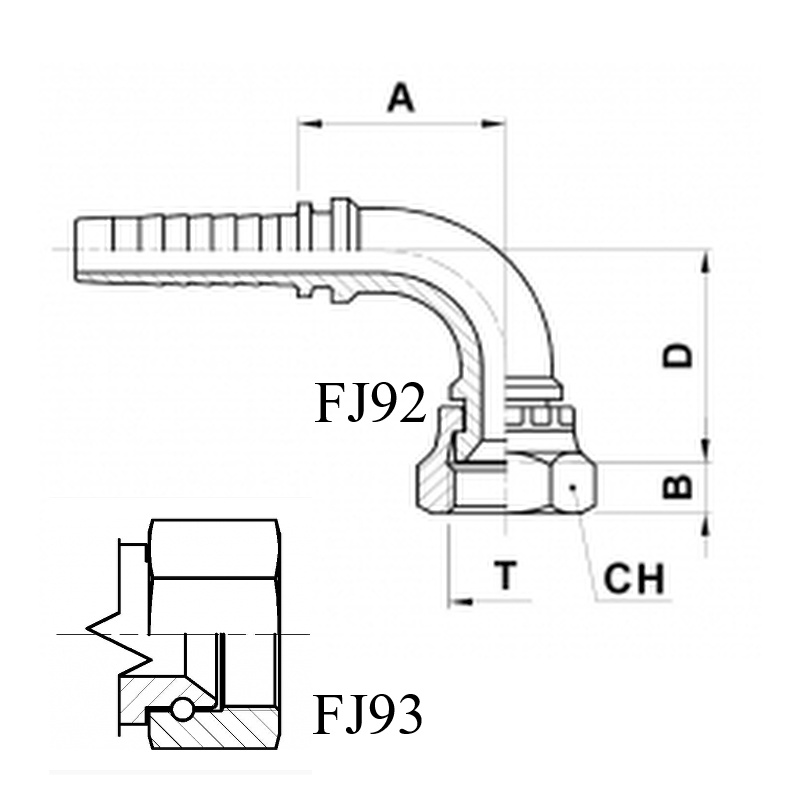

Dimensions :
Hose Bore DN 19 – 3/4 Inch – Size 12
T : 1.1/16 Inch – 12
A : 55.5 mm
B : 13.8 mm
D : 55 mm
CH : 32 mm
