Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
JIC 37° FEMALE SWIVEL – 90° ELBOW

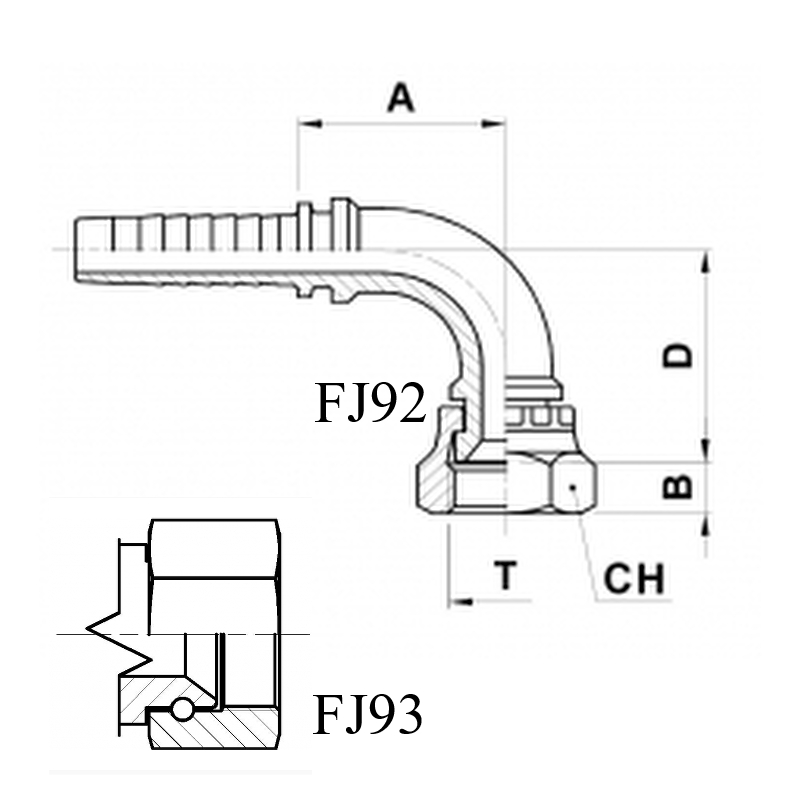

Dimensions :
Hose Bore DN 10 – 3/8 Inch – Size 6
T : 3/4 Inch – 16
A : 31.5 mm
B : 10.7 mm
D : 30 mm
CH : 24 mm
