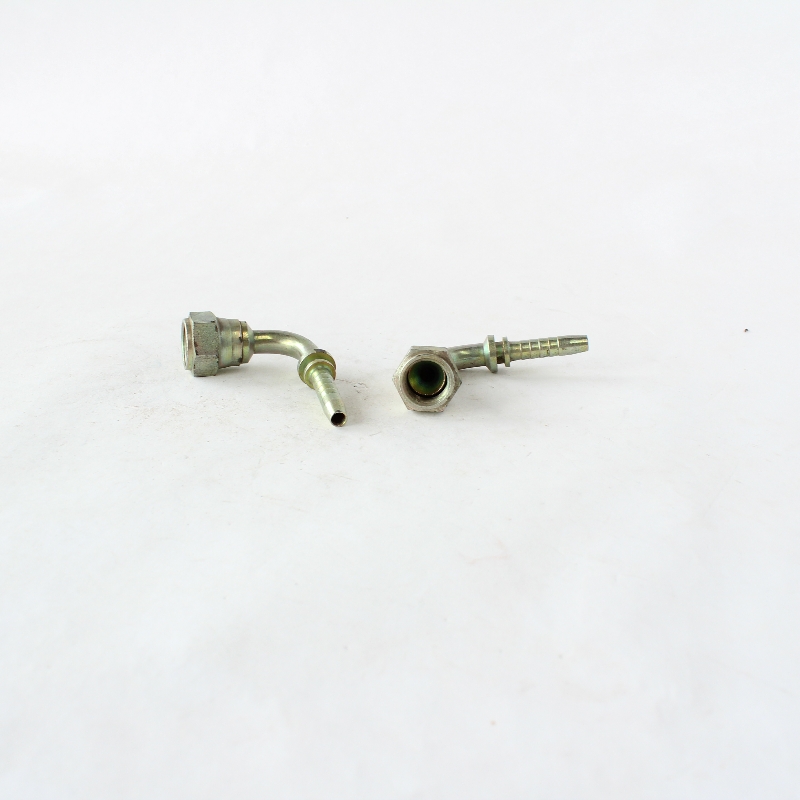

JICF900604 , Hydraulic Elbow 90 Deg. Fitting JIC FEMALE 3/8 Inch – 1/4 Inch Hose

Name: JICF900604 , Hydraulic Elbow 90 Deg. Fitting JIC FEMALE 3/8 Inch - 1/4 Inch Hose
SKU: JICF900604
Price: 640.00 KES
Availability: InStock

KES 640.00 incl. VAT

Normally Stocked,

Only 2 left in stock (can be backordered)

Manufacturer Ref.: FJ93B0406 SKU: JICF900604 Categories: hydraulic Fittings, Hydraulic hoses & fittings, Hydraulics Tags: 1/4 Inch, JICF900604

Description

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

JIC 37° FEMALE SWIVEL – 90° ELBOW

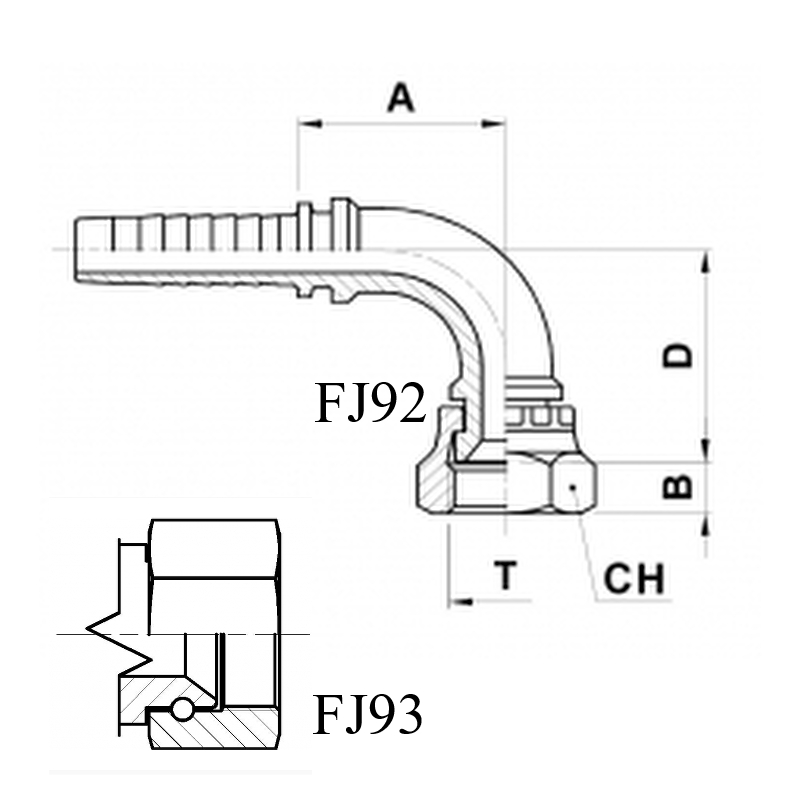

Dimensions :

Hose Bore DN 6 – 1/4 Inch – Size 4
T : 9/16 Inch – 18
A : 28.2 mm
B : 9.5 mm
D : 28 mm
CH : 19 mm

Additional information

Hose application	1 Wire, 2 Wires, 4 Wires SP
Hose Size	1/4 Inch
Fitting Standard	JIC
Fitting Size	3/8 IncH
Male or Female	Female
Shape of the fitting	90 deg
Type of Fitting	Elbow Reducer
