Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

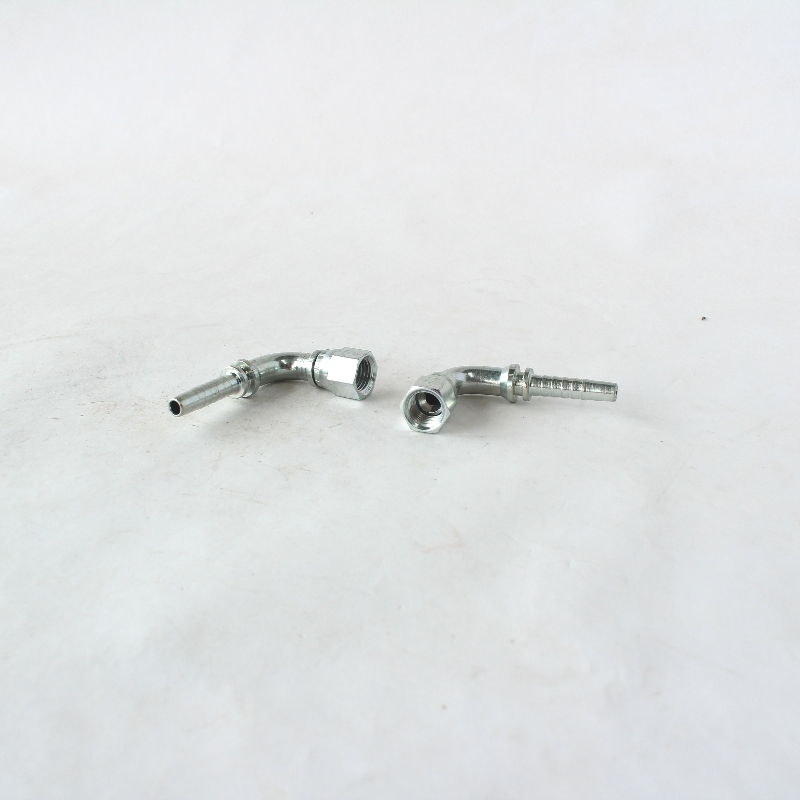

JIC 37° FEMALE SWIVEL – 90° ELBOW

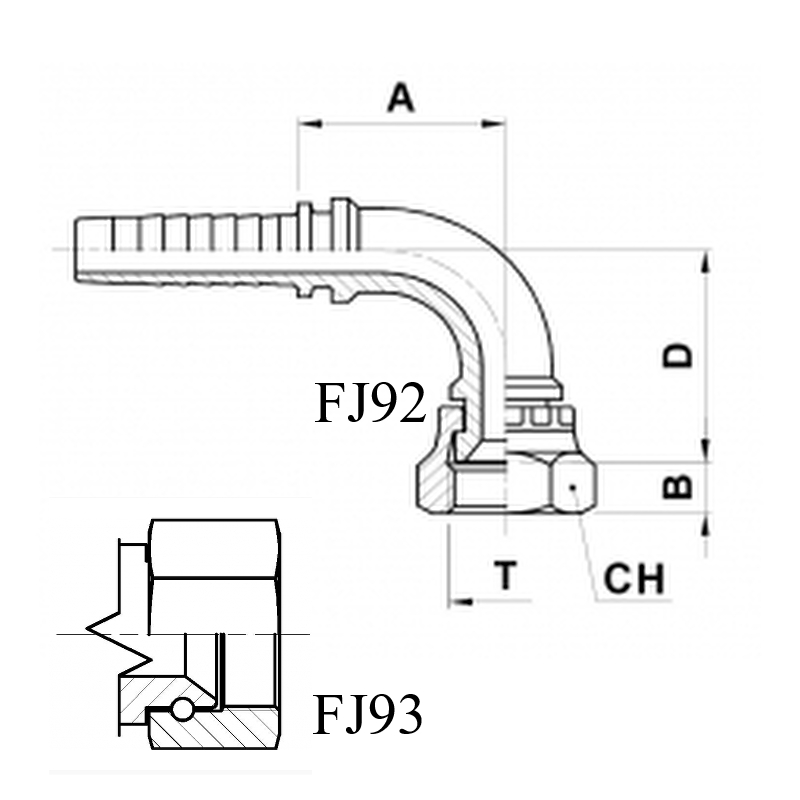

Dimensions :
Hose Bore DN 6 – 1/4 Inch – Size 4
T : 7/16 Inch – 20
A : 25.3 mm
B : 8.7 mm
D : 24.5 mm
CH : 14 mm
