FL3902020 , Hydraulic Fitting SAE 3000 CODE 61 – 90° ELBOW FLANGE 1.1/4 – 1.1/4 Inch Hose

Name: FL3902020 , Hydraulic Fitting SAE 3000 CODE 61 - 90° ELBOW FLANGE 1.1/4 - 1.1/4 Inch Hose
SKU: FL3902020
Price: 8420.00 KES
Availability: InStock

KES 8,420.00 incl. VAT

Normally Stocked,

In stock (can be backordered)

Manufacturer Ref.: AX90B2020 SKU: FL3902020 Categories: hydraulic Fittings, Hydraulic hoses & fittings, Hydraulics Tags: 1.1/4 Inch, FL3902020

Description

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

SAE 3000 CODE 61 90 deg Elbow FLANGE
Type : AX90B

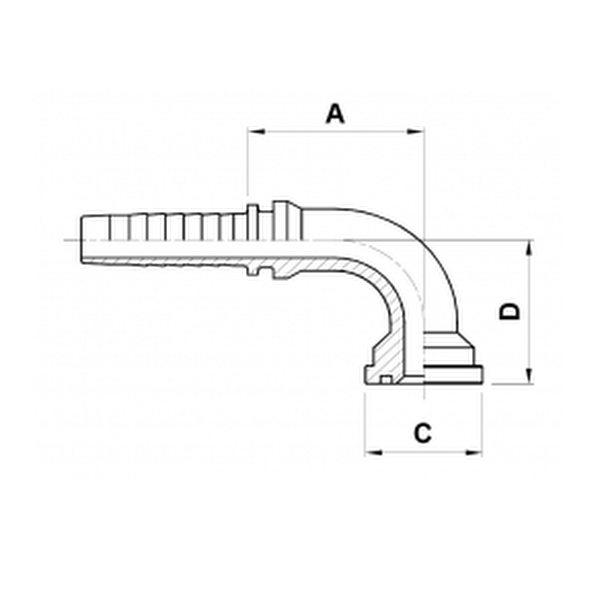

Dimensions :

Hose Bore DN 31 – 1.1/4 Inch – Size 20
Flange : 1.1/4
A : 86.8 mm
C : 50.8 mm
D : 69.2 mm

Additional information

Hose application	1 Wire, 2 Wires, 4 Wires SP
Hose Size	1.1/4 Inch
Fitting Standard	SAE 3000
Fitting Size	1.1/4 Inch
Male or Female	Face
Shape of the fitting	90 deg
Type of Fitting	Elbow
