Description

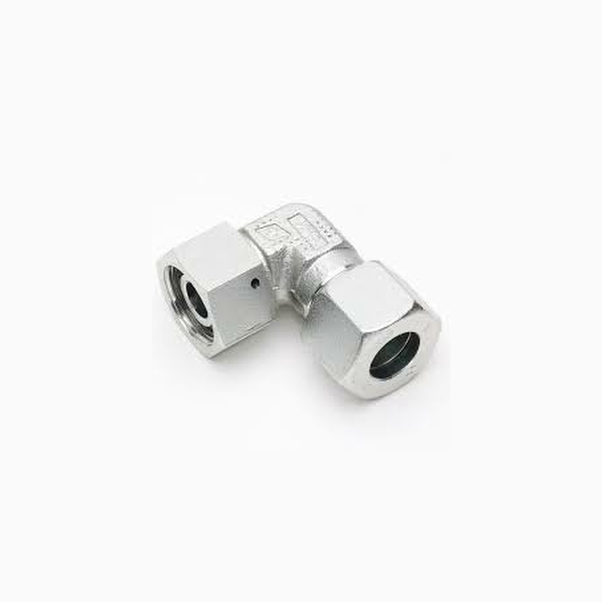

Hydraulic Adjustable Male stud Elbow 90 degrees – 18L
Specifications
For tube fitting size (light series) : 18L
With taper 24° and o-ring NBR
Nominal pressure up to 400bar

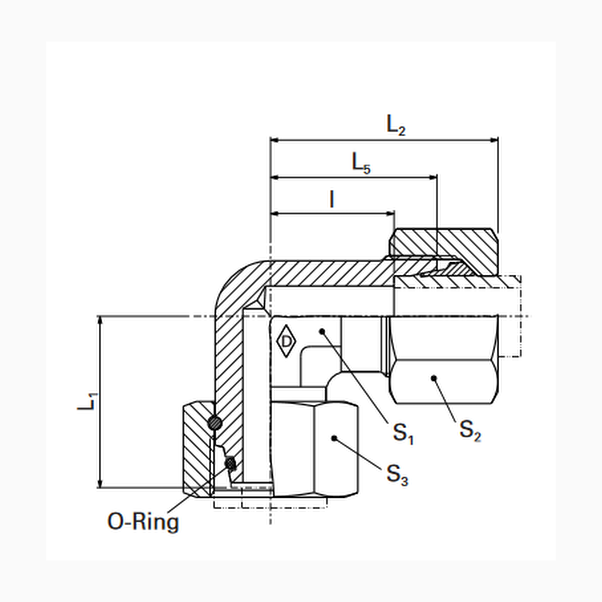

Dimensions:
L1 in mm : 35.5
L2 in mm : 40
L5 in mm : 31
I in mm : 23.5
S1 in mm : 24
S2 in mm : 32
S3 in mm : 32
O_Ring size : 15 x 2
