Description

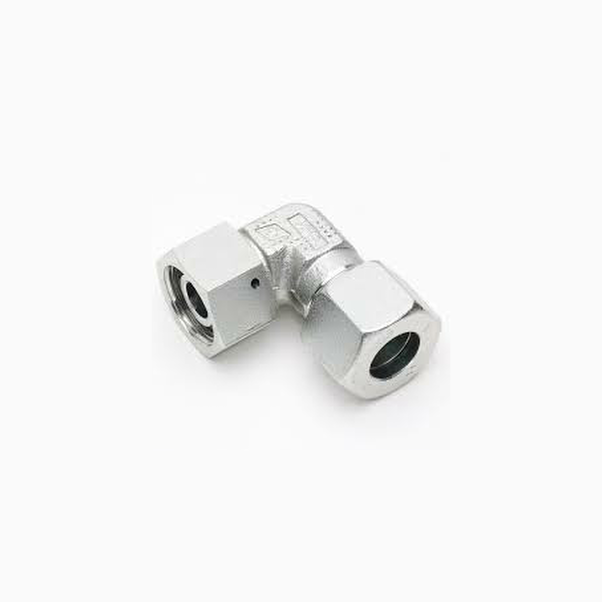

Hydraulic Adjustable Male stud Elbow 90 degrees – 10S
Specifications
For tube fitting size (light series) : 10S
With taper 24° and o-ring NBR
Nominal pressure up to 800bar

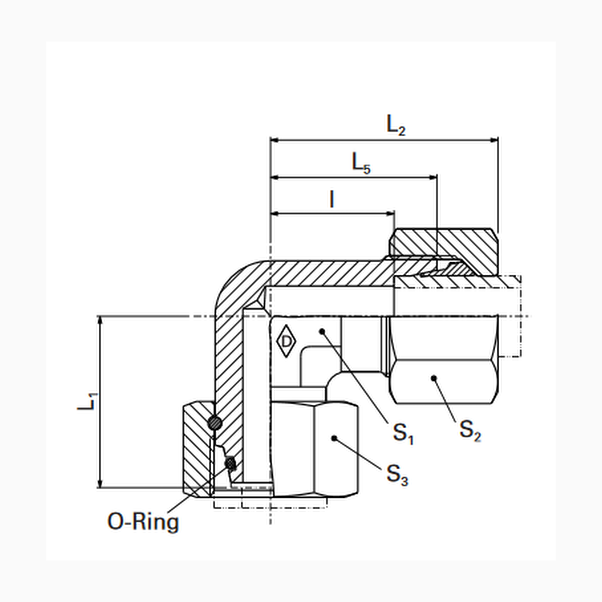

Dimensions:
L1 in mm : 30
L2 in mm : 34
L5 in mm : 25
I in mm : 17.5
S1 in mm : 17
S2 in mm : 22
S3 in mm : 22
O_Ring size : 8.5 x 1.5
