Description

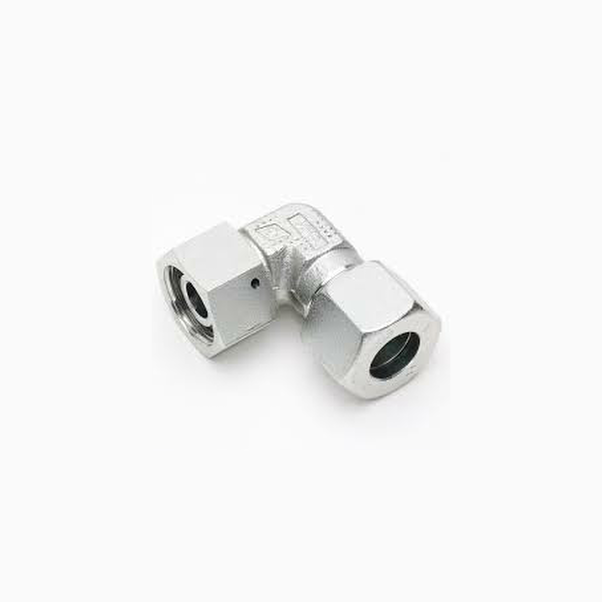

Hydraulic Adjustable Male stud Elbow 90 degrees – 6S
Specifications
For tube fitting size (light series) : 6S
With taper 24° and o-ring NBR
Nominal pressure up to 800bar

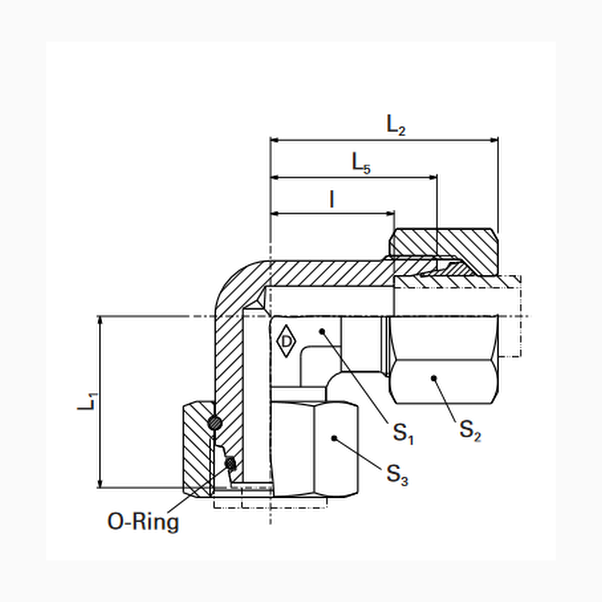

Dimensions:
L1 in mm : 27
L2 in mm : 31
L5 in mm : 23
I in mm : 16
S1 in mm : 12
S2 in mm : 17
S3 in mm : 17
O_Ring size : 4.5 x 1.5
