Description

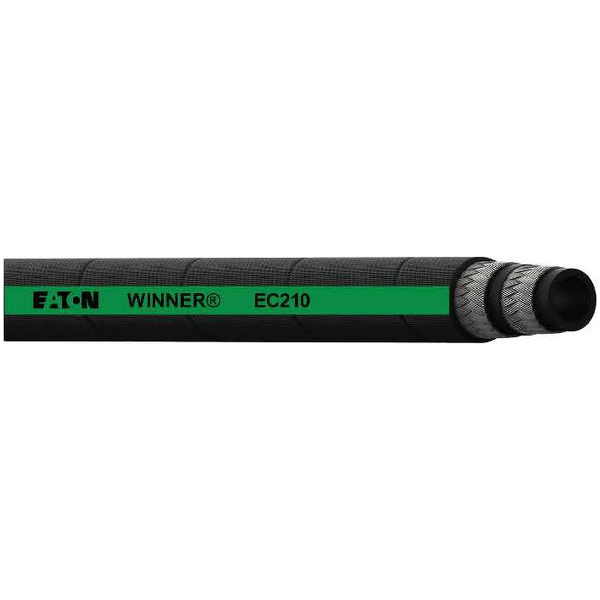

Hydraulic Hose
Eaton Winner Hoses
Type : 2 Wires
Size : 1.1/2 Inch
Hose ID mm/inch : 38.1 – 1.5
Hose OD mm/inch : 55.9 – 2.2
Working Pressure Bar/ PSI : 90/1300
Min. Burst Pressure Bar/PSI : 360 – 5200
Min Bend radius mm/inch : 500 – 19.69
Weight kg/m – lbs/ft : 2.10 – 1.41
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
