Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

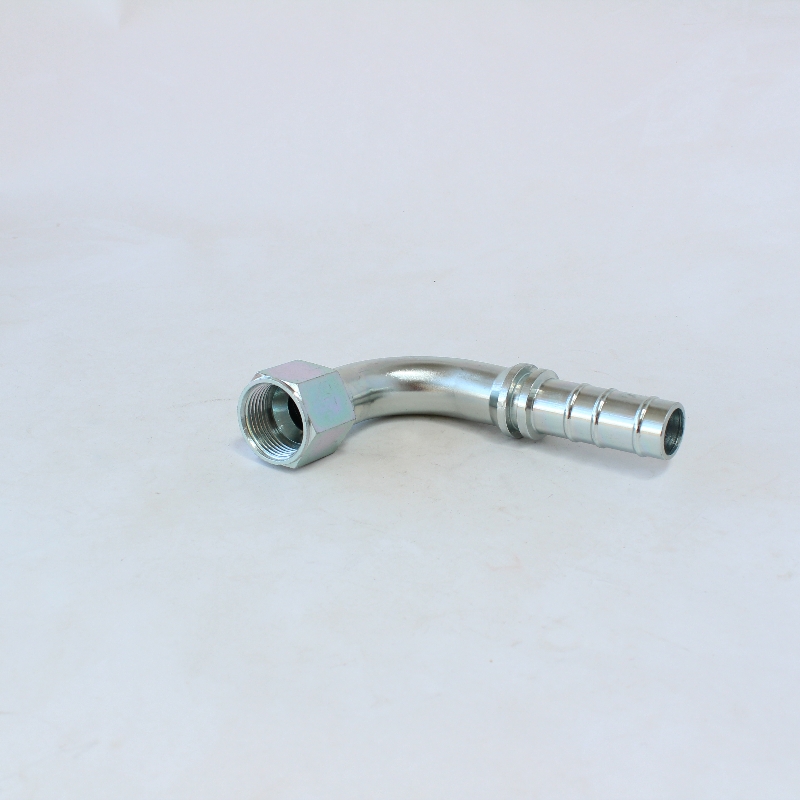

JIC 37° FEMALE SWIVEL – 90° ELBOW W

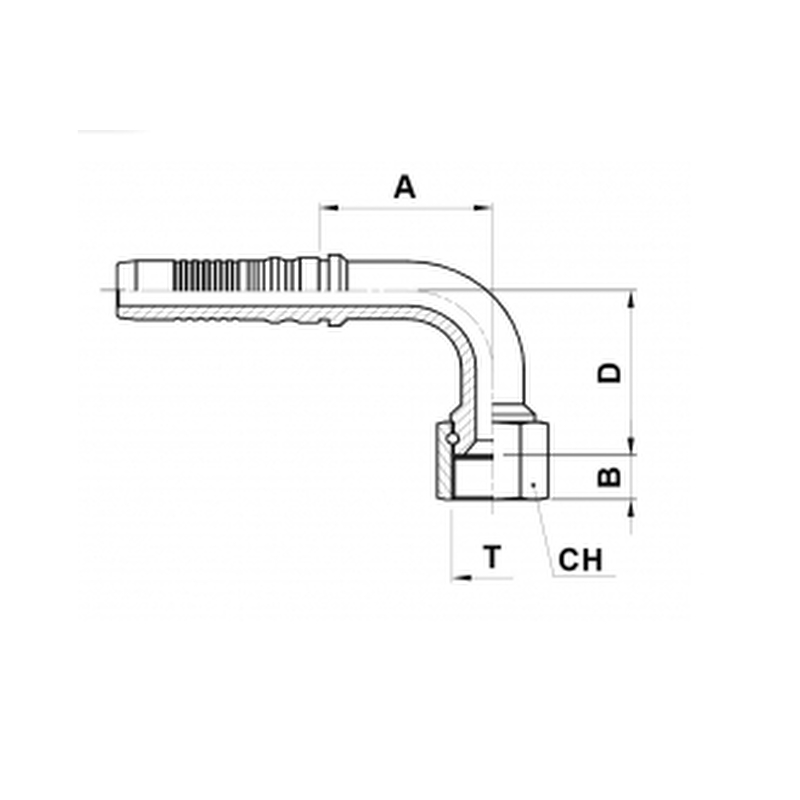

Dimensions :
Hose Bore DN 25 – 1 Inch – Size 16
T : 1.5/16 Inch – 12
A : 69 mm
B : 16 mm
D : 71 mm
CH : 38 mm
