Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

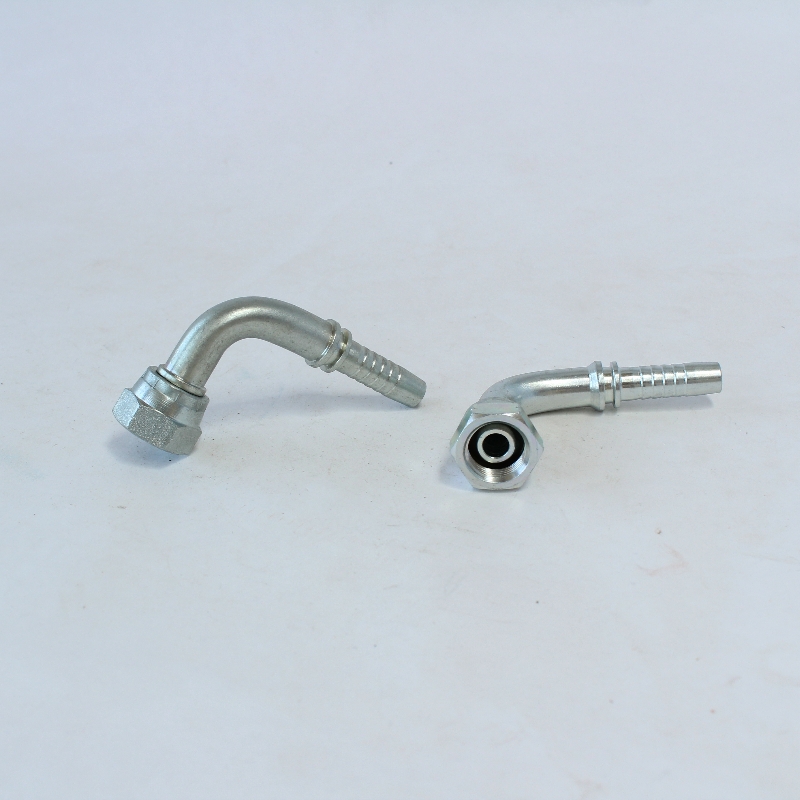

BSP FEMALE SWIVEL – 60° CONE 90° ELBOW

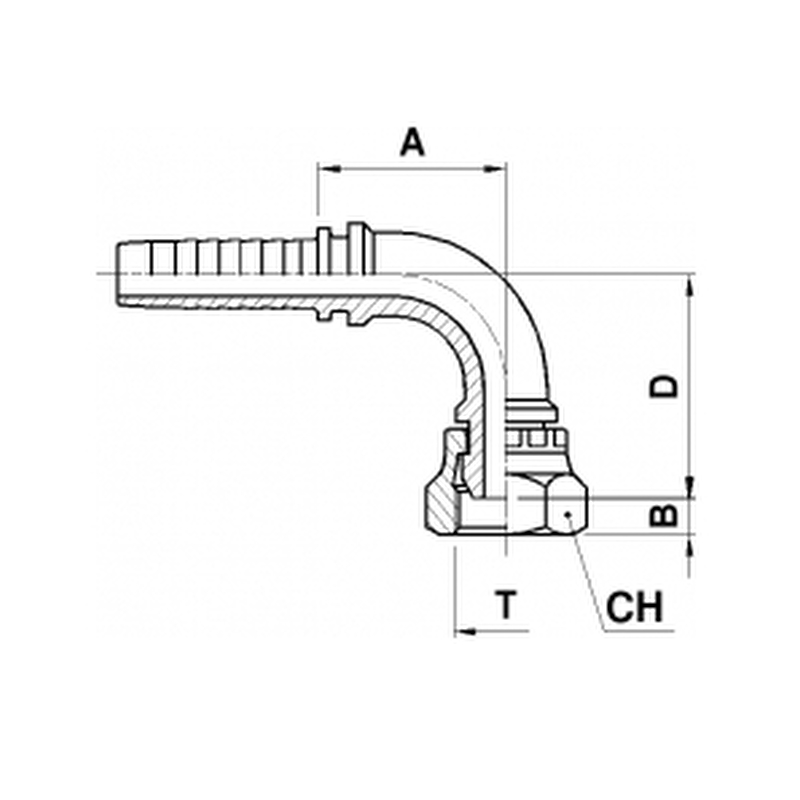

Dimensions :
Hose Bore DN 10 – 3/8 Inch – Size 6
T : 3/8 Inch – 19
A : 32.5 mm
B : 6 mm
D : 30 mm
CH : 22 mm
